Swing Check Valve

A valve designed to prevent the backflow of fluids and to allow pigging operations

Highlights

  • Compact design
  • Tight sealing
  • Piggable

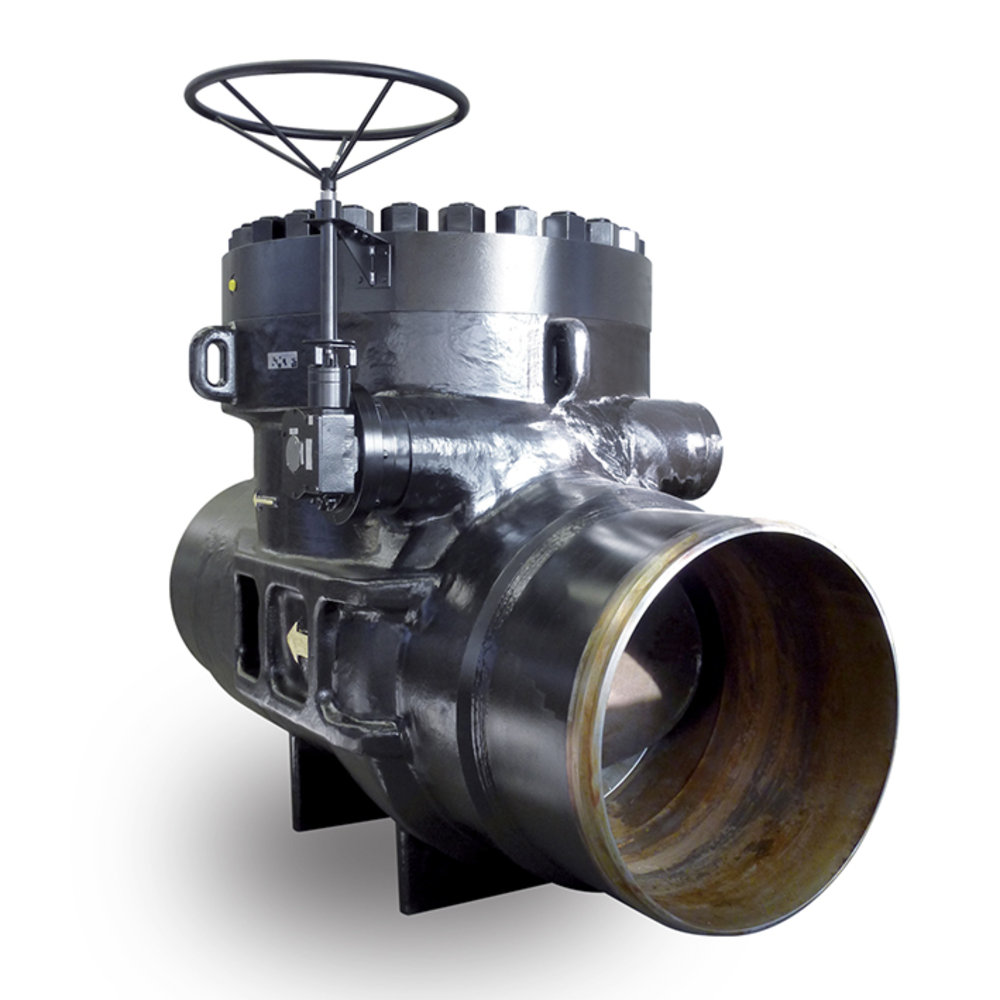

Swing Check Valve

ATV manufactures a full range of Swing Check valves for production, processing and transmission applications, suitable for pressure ratings up to API Class 15000 and ANSI Class 2500.

Swing check valves are typically full bore with optimized design of body cavity and disk for piggability, including the capability to handle intelligent pigs. Reduced bore check valves can be supplied on request for specific applications in pumping stations.

ATV Swing Check valves can be supplied with dampening system to increase the closing time and avoid shocks and with clapper lifting device operated manually or by remote controlled actuators. Lost motion devices can be supplied to reduce the wear on the shafted seals. Sensors for remote indication of clapper position are also available.

Materials are sourced from qualified suppliers on the base of specifications that reflect the industry standards (ASTM, NORSOK, BS, DIN or others), but do also incorporate additional requisitions resulting from long experience.
ATV designs, manufactures and tests its products in accordance with all the relevant Industry standards and codes (API, ANSI, ASME, BS, ISO, NACE, PED and others).

ATV stresses its willingness to produce engineered valves; therefore, it welcomes requests for special size, class and design requirements.

Images

Swing Check Valve - Specifications

SPECIFICATION

APPLICATIONS Upstream applications Pipelines, rigs, platforms, skids, production plants
APPLICABLE STANDARDS API 6A, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards API 6D, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards
RANGES 1 13/16” ÷ 9”, Class API 3000 and 5000, 1 13/16” ÷ 7 1/16” Class API 10000, 1 13/16” ÷ 5 1/8” Class API 15000. Any other size upon application. 2” ÷ 60” Class ANSI 600, 2” ÷ 48” Class ANSI 900, 2” ÷ 36” Class ANSI 1500, 2” ÷ 20” Class ANSI 2500. Larger sizes available on request.

MAIN FEATURES

Forged body
Cast body
Bolted bonnet
Full bore
Welded-in or removable seat
Metal seated
Soft seated
Wear resisting hardfacing on sealing surfaces
Local position indicator
In-line maintenance

END CONNECTIONS

Flanges (to API 6A)
Flanges (to ASME B16.5 up to 24” and B16.47A for 26” and larger)
Compact flanges (to Norsok L005)
Buttwelded ends (to ANSI 16.25)
Hub ends for clamped connections (as per customer requirement)

MATERIALS

Carbon steel with partial or full CRA overlay on the wetted areas
Low alloy carbon steel with partial or full CRA overlay on the wetted areas
Stainless steel
Duplex or Superduplex stainless steel
Nickel Alloy

OPERATORS

Manual gear for pigging operations
Actuator for pigging operations

OPTIONS

Reduced bore
CRA Overlay, full or partial
Conduit clapper
Clapper position switches and transmitter
Hydraulic dampener
Lock open lever / clapper position indicator
