Through Conduit Slab Gate Valve

Unmatched robustness in harsh services with high pressures and high temperatures.

Highlights

  • Robust design
  • High sealing capability
  • Suitable for high pressure, high temperature
Through Conduit Slab Gate Valve

ATV manufactures a full range of Through Conduit Slab Gate valves for on-land applications in the Oil & Gas production, processing and transmission.

Through Conduit Slab Gate valves provide superior bubble tight sealing capabilities in gas service and unmatched robustness in harsh services with high pressure, high temperatures and solid particles. The full bore through conduit design minimizes the turbolence of the flow and when the valve is open the pressure drop is equivalent to that produced by a pipe with the same diameter and length. Moreover, the valve is perfectly suitable for pigging operations.

ATV considers the through conduit slab gate valve  the preferred choice for HIPPS applications, in consideration of the bore pressure assisting the spring to close.

ATV supplies the through conduit slab gate valves in a wide range of materials and configurations to meet any specific need of the application and customer’s requirements.  ATV slab gate valves are manufactured with hardfaced sealing surfaces with Tungsten Carbide Coating (TCC). Optional features are available for seat and stem seals, hardfacings and end connections.

Through Conduit Slab Gate valves are suitable for manual operation or for power assisted operation. ATV takes full responsibility in selecting the most suitable size for operating conditions. However, ATV welcomes customers supplied items too: in such a case ATV responsibility is limited to the assembling of the actuator on the valve and testing of valve and actuator system. On request, ATV may participate in the actuator selection together with the customer.

Materials are sourced from qualified suppliers on the base of specifications that reflect the industry standards (ASTM, NORSOK, BS, DIN or others), but do also incorporate additional requisitions resulting from long experience.
ATV designs, manufactures and tests its products in accordance with all the relevant Industry standards and codes (API, ANSI, ASME, BS, ISO, NACE, PED and others). ATV Through Conduit Slab Gate valves can be manufactured to conform to API 6A product specification level PSL 3/3G and pressure tested to either API 6A or API 6D requirements.

ATV stresses its willingness to produce engineered Through Conduit Slab Gate valves; therefore, it welcomes requests for special size, class and design requirements.

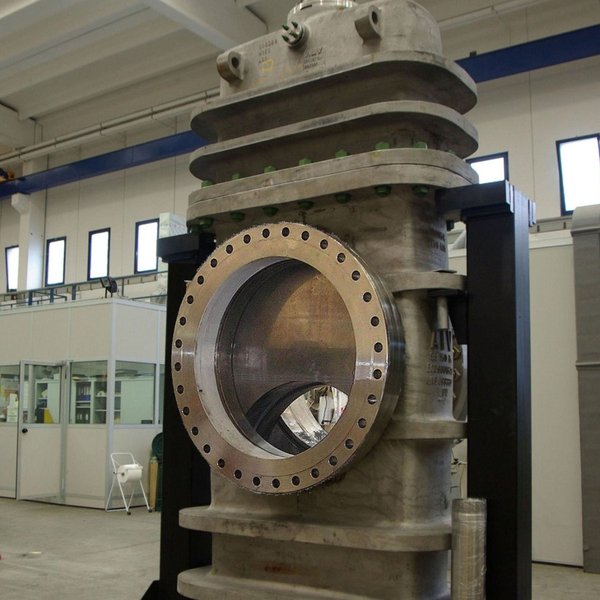

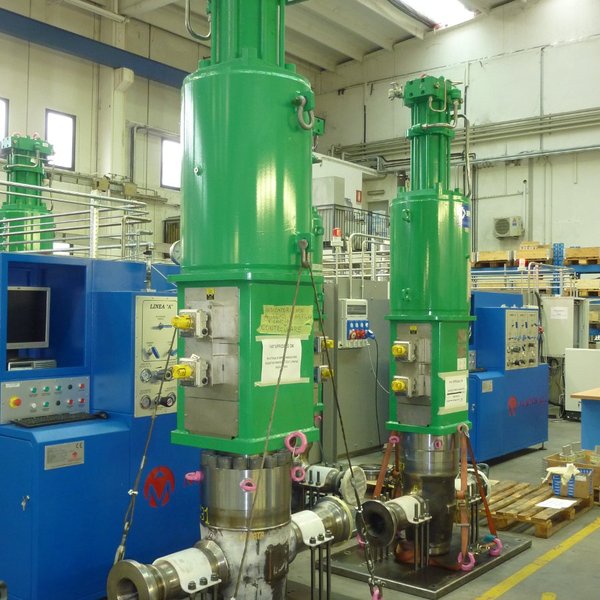

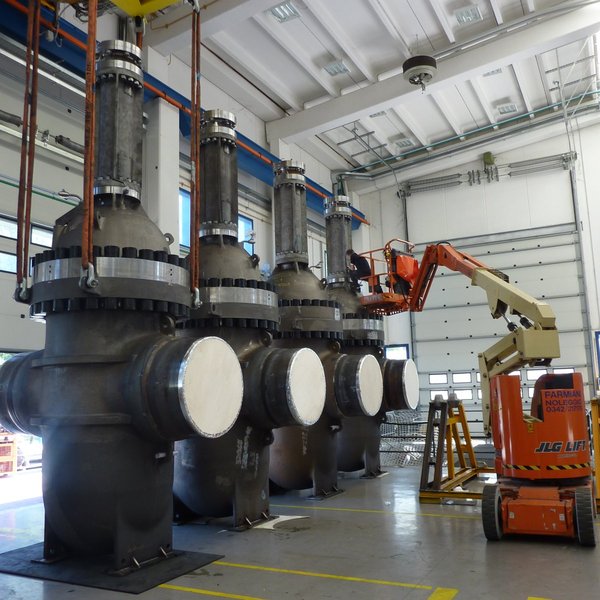

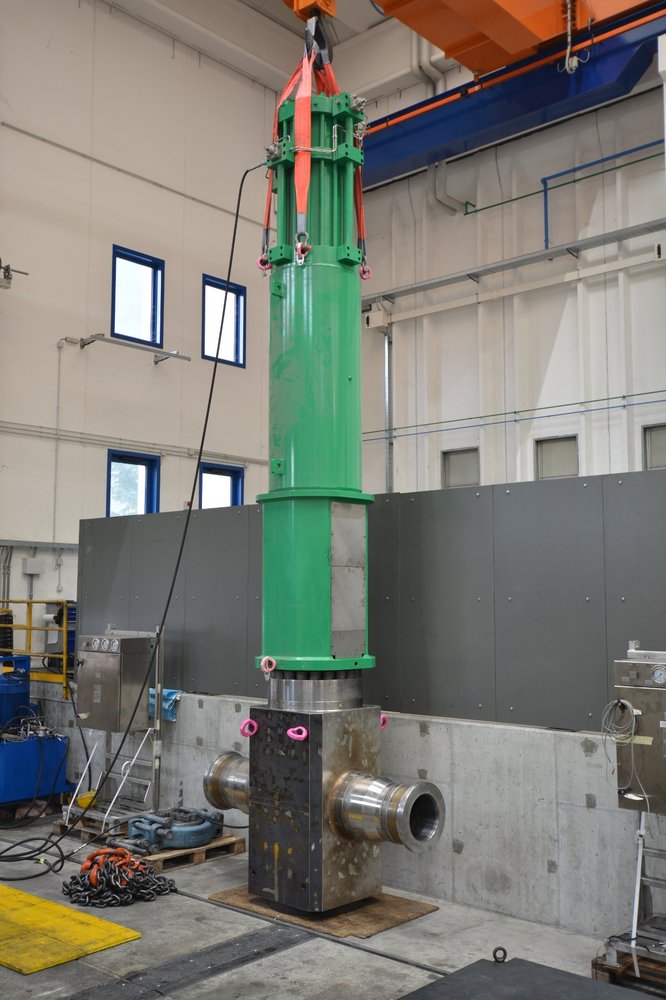

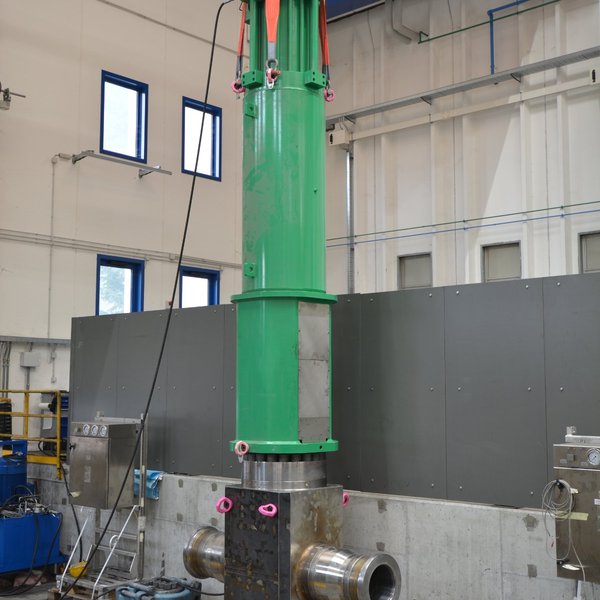

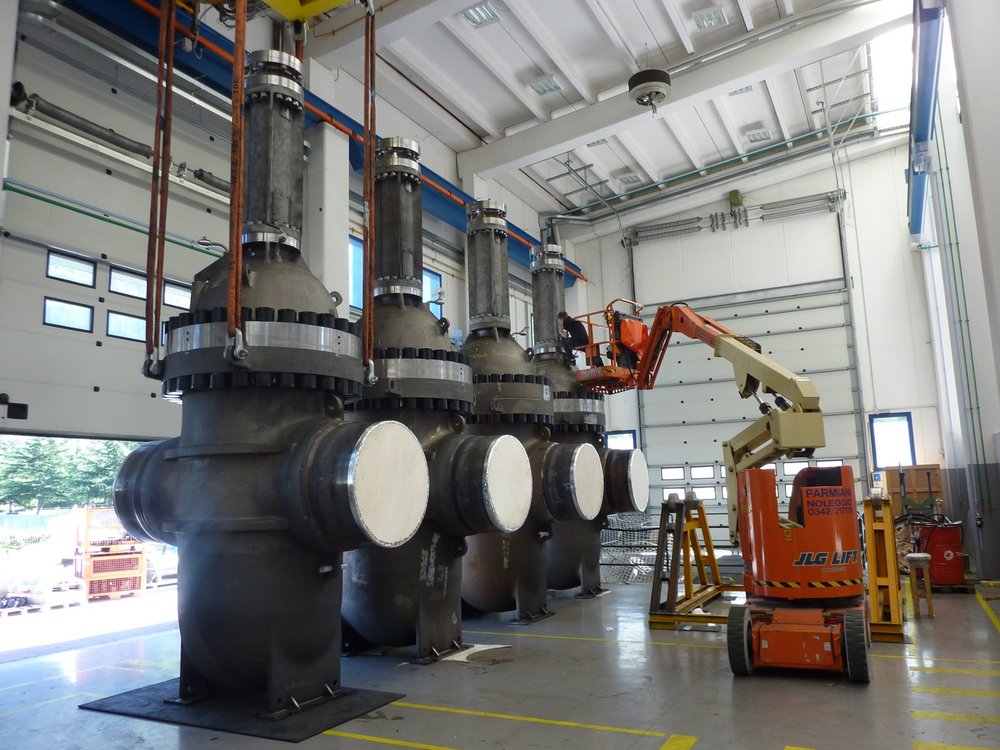

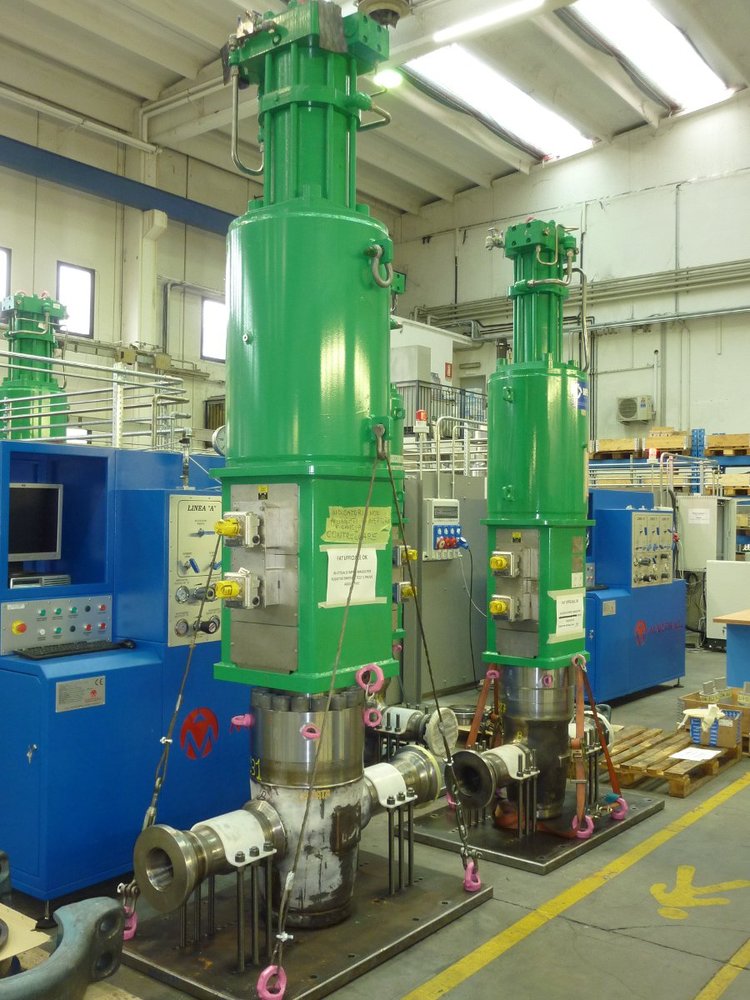

Images

Through Conduit Slab Gate Valve - Specifications

SPECIFICATION

APPLICATIONS Upstream applications, HIPPS System Pipelines, rigs, platforms, skids, production plants
APPLICABLE STANDARDS API 6A, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards API 6D, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards
RANGES 1 13/16” ÷ 9”, Class API 3000 and 5000, 1 13/16” ÷ 7 1/16” Class API 10000, 1 13/16” ÷ 5 1/8” Class API 15000. Any other size upon application. 2” ÷ 60” Class ANSI 600, 2” ÷ 48” Class ANSI 900, 2” ÷ 36” Class ANSI 1500, 2” ÷ 20” Class ANSI 2500. Larger sizes available on request.

MAIN FEATURES

Forged body
Bolted bonnet
Full bore
Bidirectional
Standard acting (Fail Safe Open)
Double Block and Bleed (DBB)
Metal seated
Wear resisting hardfacing on sealing surfaces
Rising stem design
Backseat in open and/or close position
Fire-Safe design
Qualification to API 6A Appendix F PR2
Local position indicator
In-line maintenance

END CONNECTIONS

Flanges (to API 6A)
Flanges (to ASME B16.5 up to 24” and B16.47A for 26” and larger)
Compact flanges (to Norsok L005)
Studded flanges
Buttwelded ends (to ANSI 16.25)
Hub ends for clamped connections (as per customer requirement)

MATERIALS

Carbon steel with partial or full CRA overlay on the wetted areas
Low alloy carbon steel with partial or full CRA overlay on the wetted areas
Stainless steel
Duplex or Superduplex stainless steel
Nickel Alloy

OPERATORS

Gear and Handwheel
Electric Multi-Turn
Hydraulic linear actuator
Pneumatic linear actuator

OPTIONS

Reverse acting (Fail Safe Close)
Seat skirts
Inside screw non rising stem
Yoke extension for underground installation
Double Block and Bleed (DBB)
Remote position indicators (LVDTs and/or limit switches)
