Top Entry Ball Valve

The most preferred choice when ease of field maintenance may be a concern.

Highlights

  • The preferred choice to ease field maintenance

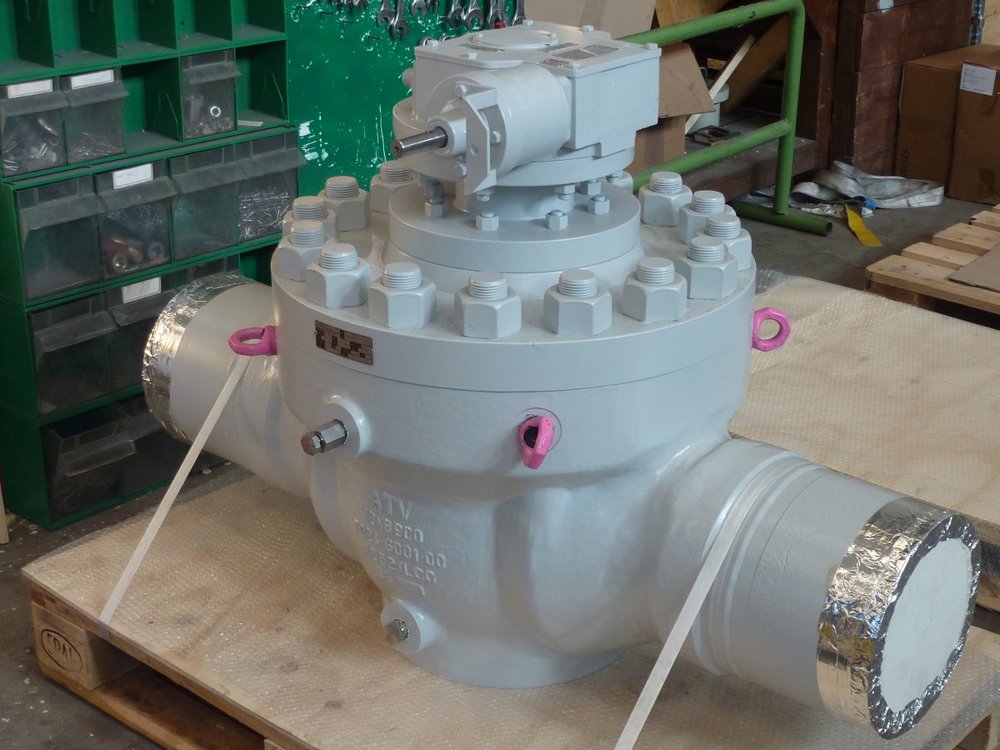

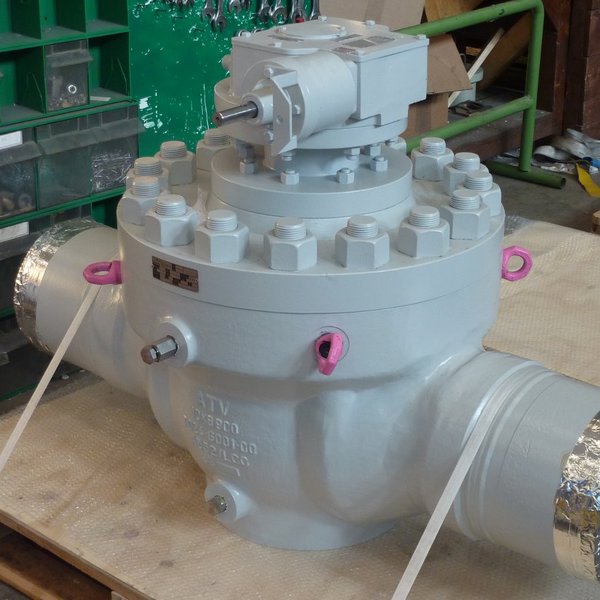

Top Entry Ball Valve

ATV supplies a full range of Top Entry Ball Valves, trunnion mounted, for topside applications in the Oil &Gas exploration, production and transmission.

ATV top entry ball valve is the most suitable for severe service conditions, where ease of in-line maintenance may be a concern: the top entry design with bolted bonnet allows free access to the body cavity without removing the valve from the line, even if the space around the valve is restricted. ATV has developed a set of special tools that permit to easily take out both ball and seats, even when the valve is installed on vertical line.

ATV supplies top entry ball valves in a wide range of materials and configurations to meet any specific need of the application and customer’s requirements. Cast body construction is particularly suitable to allow an optimization of the weight due to the near shape configuration of the body itself, specially on the biggest sizes, whereas a forged body is the preferred choice for the high pressures. Typically, soft-seated configuration is available for clean service whereas metal-to-metal sealing is the preferred choice for the highest reliability in harsh service with the presence of solid particles, high pressure and high temperature. Many optional features are available for seat designs, seat and stem seals, and end connections.

ATV ball valves are suitable for manual operation or for power assisted operation. ATV takes full responsibility in selecting the most suitable size for operating conditions. However, ATV welcomes customers supplied items too: in such a case ATV responsibility is limited to the assembling of the actuator on the valve and testing of valve and actuator system. On request, ATV may participate in the actuator selection together with the customer.

Materials are sourced from qualified suppliers on the base of specifications that reflect the industry standards (ASTM, NORSOK, BS, DIN or others), but do also incorporate additional requisitions resulting from long experience.

ATV designs, manufactures and tests its products in accordance with all the relevant Industry standards and codes (API, ANSI, ASME, BS, ISO, NACE, PED and others). ATV ball valves can be manufactured to conform to API 6A product specification level PSL 3/3G and pressure tested to either API 6A or API 6D requirements.

ATV stresses its willingness to produce engineered valves; therefore, it welcomes requests for special size, class and design requirements.

Images

Top Entry Ball Valve - Specifications

SPECIFICATION

APPLICATIONS Upstream applications, HIPPS System Pipelines, rigs, platforms, skids, production plants
APPLICABLE STANDARDS API 6A, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards API 6D, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175 and other diffused Industry standards
RANGES 1 13/16” ÷ 9”, Class API 3000 and 5000, 1 13/16” ÷ 7 1/16” Class API 10000, 1 13/16” ÷ 5 1/8” Class API 15000. Any other size upon application. 2” ÷ 60” Class ANSI 600, 2” ÷ 48” Class ANSI 900, 2” ÷ 36” Class ANSI 1500, 2” ÷ 20” Class ANSI 2500. Larger sizes available on request.

MAIN FEATURES

Forged body construction

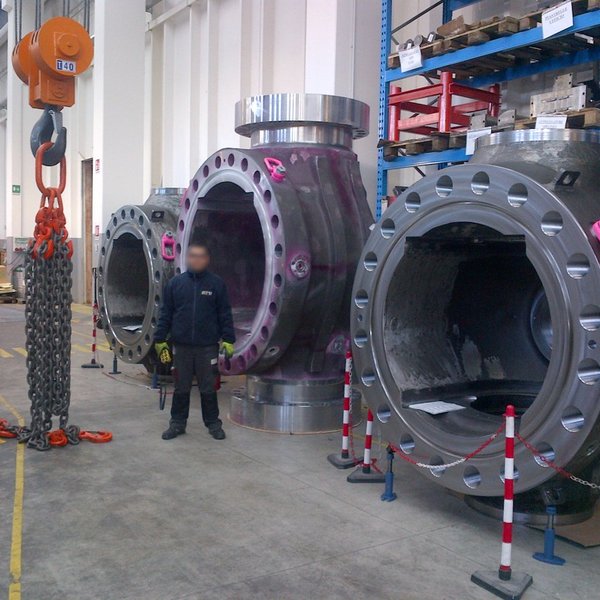

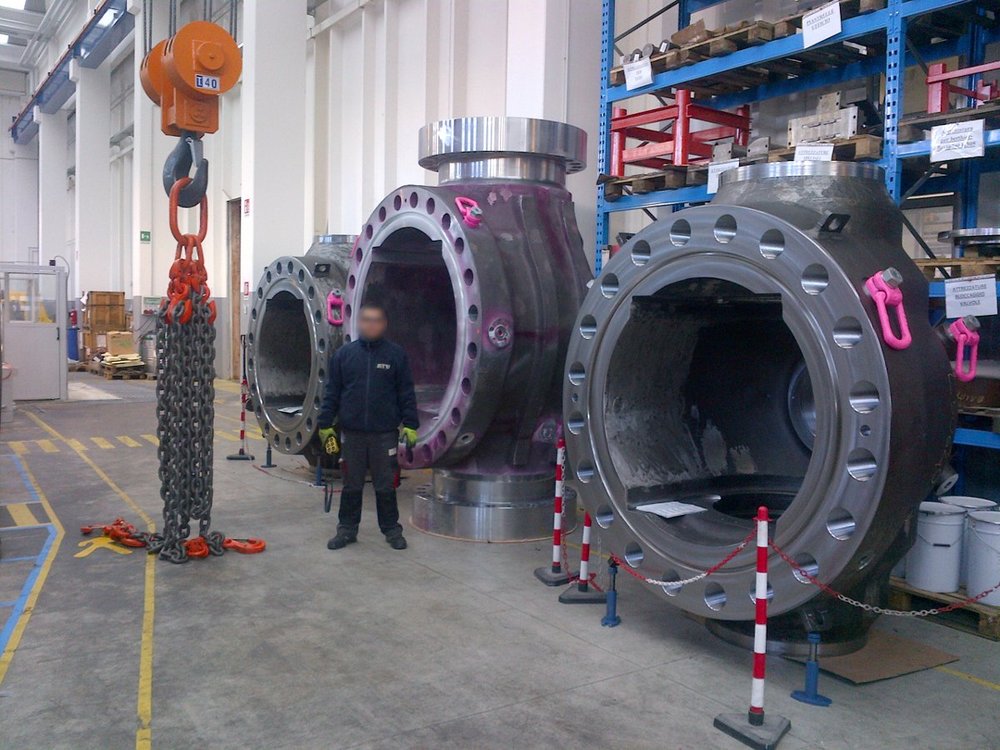

Cast body construction
Bolted closure
Trunnion mounted
Full bore or reduced bore
Single piston effect (SPE)
Soft or Metal seated
Wear resisting hardfacing on sealing surfaces
Double Block and Bleed (DBB)
Anti-Blowout stem
Fire-Safe design
Qualification to API 6A Appendix F PR2

END CONNECTIONS

Flanges (to API 6A)
Flanges (to ASME B16.5 up to 24” and B16.47A for 26” and larger)
Compact flanges (to Norsok L005)
Buttwelded ends (to ANSI 16.25)
Hub ends for clamped connections (as per customer requirement)

MATERIALS

Carbon steel with partial or full CRA overlay on the wetted areas
Low alloy carbon steel with partial or full CRA overlay on the wetted areas
Stainless steel
Duplex or Superduplex stainless steel
Nickel Alloy

OPERATORS

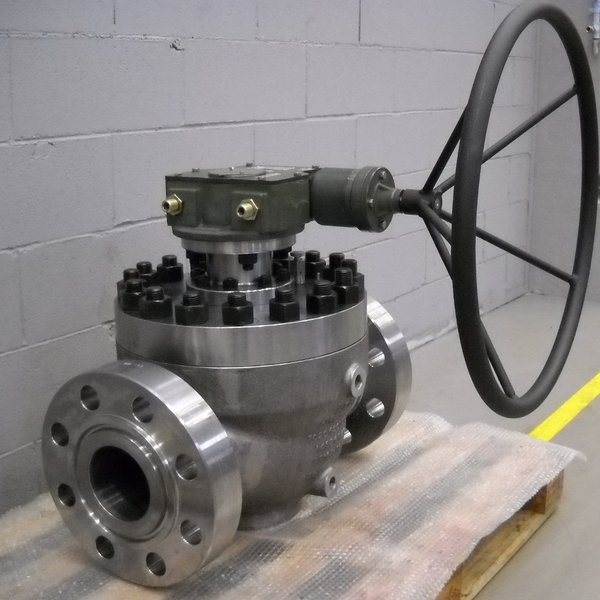

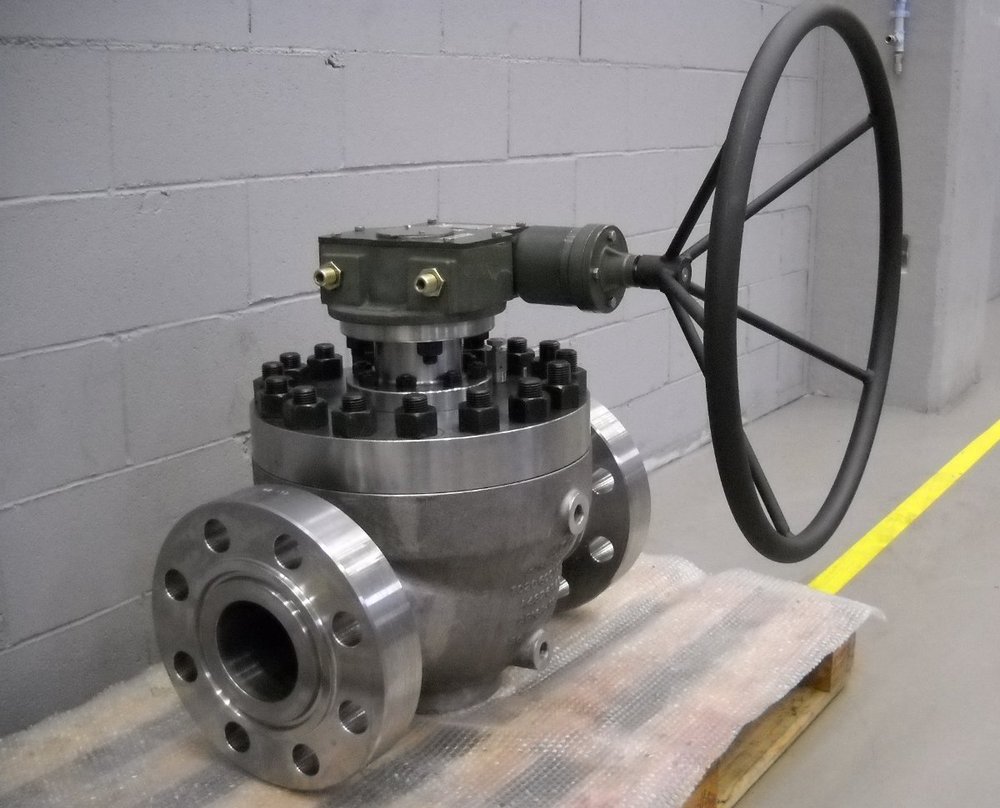

Handwheel or manual gear
Electric Multi-Turn

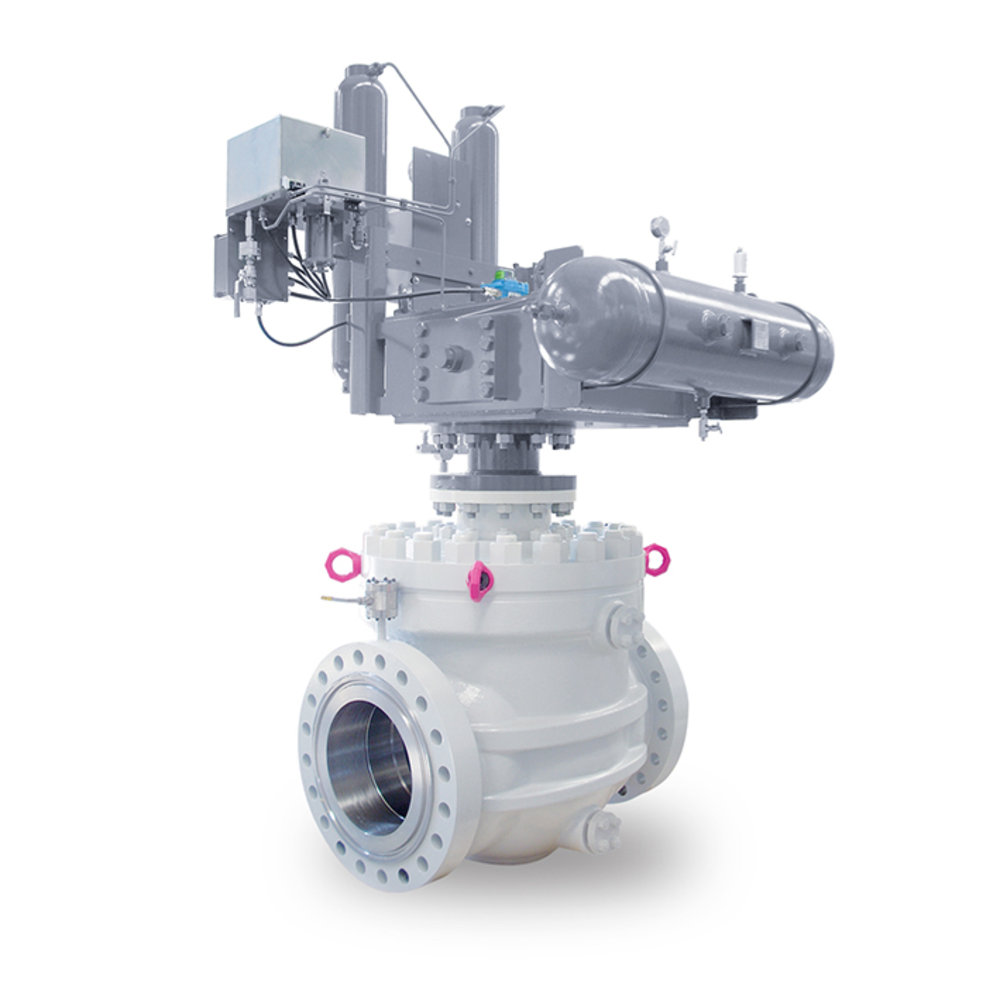

Pneumatic quarter turn actuator
Hydraulic quarter turn actuator

OPTIONS

Stem-Sealant injection
Seat-Sealant injection
Stem extension for underground installation
Extended yoke for high-temperature o low-temperature service
Cryogenic service design
Double Block and Bleed (DBB)
