Rising Stem Ball Valve

A low maintenance valve, particularly appropriate for gas processing with high temperature and cycling service.

Highlights

  • Low maintenance valve due to the non-contact between ball and seat during the stroking action
  • Tight sealing in both direction
  • Extended Temperature range (from -46°C to 450°C)
Rising Stem Ball Valve

ATV offers a full range of Rising Stem Ball Valves mainly suitable for gas processing, such as for high temperature and cycling service, on molecular sieves and dehydrating units in gas treatment, isomerization units and other processing plants.

Rising Stem Ball Valves are the most suitable for these severe service applications requiring the highest reliability because the sealing surfaces do not contact during stroking with the benefit of long life without maintenance. Peculiarity of ATV Rising Stem Ball Valve is that when the ball is in close position, the tight sealing between the ball and the single fixed seat is granted in both directions. Rising Stem Ball Valves can be operated with manual gear or with electric, pneumatic or hydraulic actuators.

Materials are sourced from qualified suppliers on the base of specifications that reflect the industry standards (ASTM, NORSOK, BS, DIN or others), but do also incorporate additional requisitions resulting from long experience.

ATV designs, manufactures and tests its products in accordance with all the relevant Industry standards and codes (API, ANSI, ASME, BS, ISO, NACE, PED and others).  ATV rising stem ball valves are pressure tested to API 6D requirements.

ATV stresses its willingness to produce engineered valves; therefore, it welcomes requests for special size, class and design requirements.

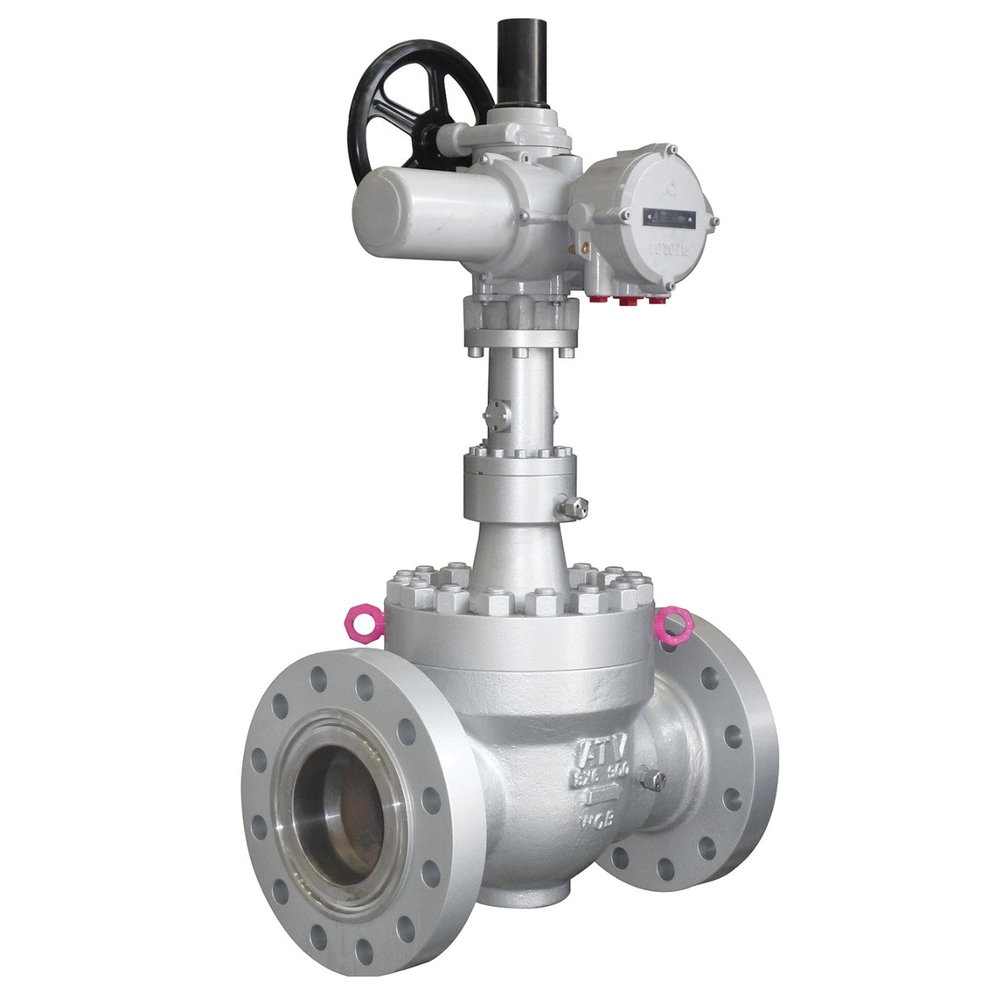

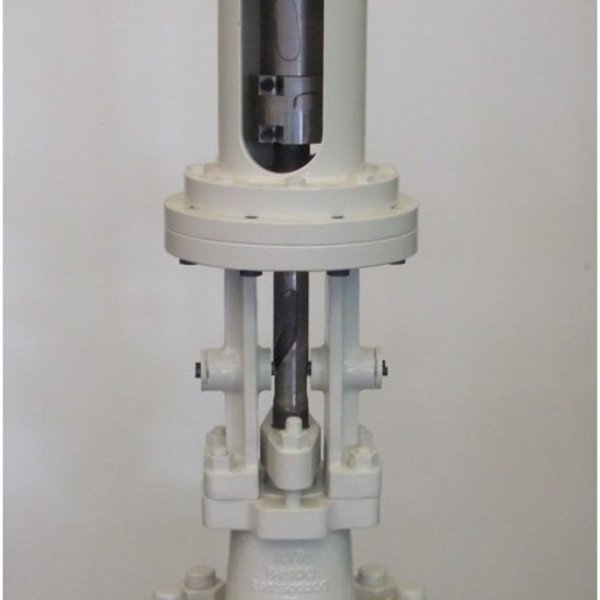

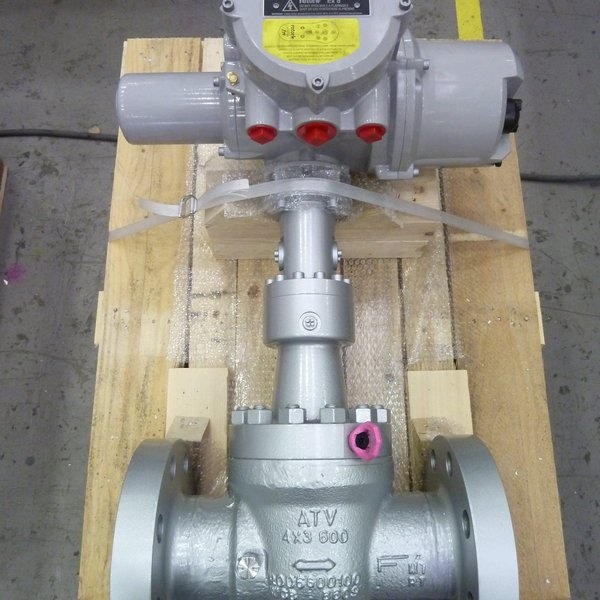

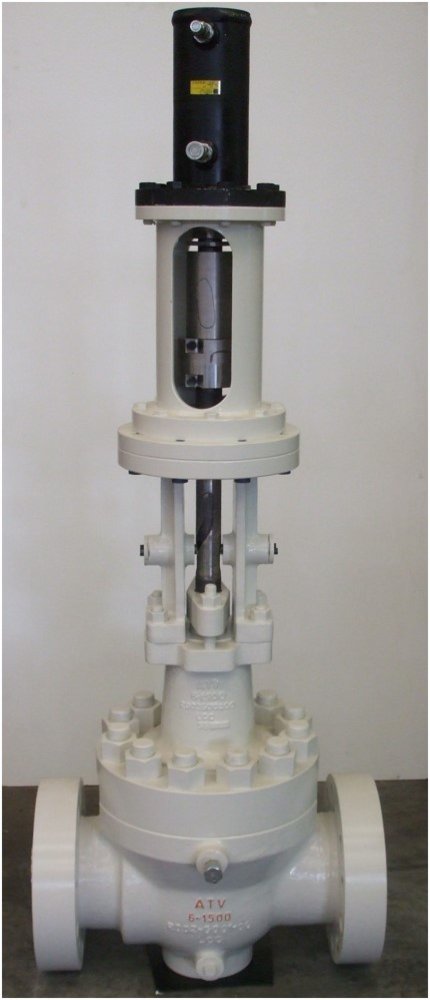

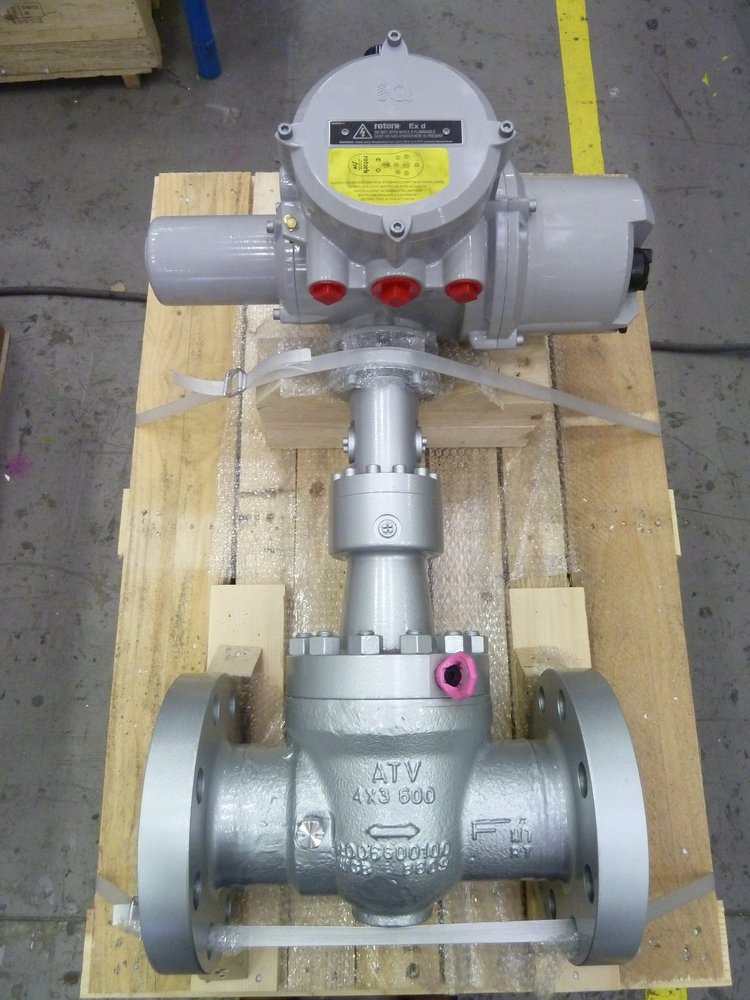

Images

Rising Stem Ball Valve - Specifications

SPECIFICATION

APPLICATIONS Gas processing, isomerization units and other processing plants
APPLICABLE STANDARDS API 6D, API 6FA, ASME VIII Division 1 and 2, ASME B16.34, ASME B16.10, ASME B16.5, NACE MR0175
RANGES 2” ÷ 24” Class ANSI 600, 2” ÷ 20” Class ANSI 900, 2” ÷ 12” Class ANSI 1500 and 2500. Larger sizes available on request.

MAIN FEATURES

Cast Body Construction
Top Entry with Bolted Bonnet
Full Bore or Reduced Bore
Metal Seated
Wear Resisting Hardfacing on Sealing Surfaces
Bi-Directional Tight Sealing
Fire-Safe Design

END CONNECTIONS

Flanges (to ASME B16.5 up to 24” and B16.47A for 26” and larger)
Compact flanges (to Norsok L005)
Buttwelded ends
Hub ends for clamped connections (as per customer requirement)

MATERIALS

Carbon Steel
Low alloy carbon steel
Stainless Steel
Duplex or Superduplex stainless steel
Nickel Alloy

OPERATORS

Handwheel or manual gear
Electric Multi-Turn
Pneumatic Actuator
Hydraulic Actuator

OPTIONS

Forged body construction
High-Temperature Service
Hydraulic snubber for pneumatic actuator
Injectable packing for in-line maintenance service
Handwheel Extension
